Boxplot with Statistical Annotations

Boxplots are a great way to visualize the distribution of data across different groups. The plot_boxplot_with_stats function creates publication-ready boxplots with built-in statistical tests and automatic p-value annotations.

Features

Statistical tests: Automatic ANOVA/Kruskal-Wallis and pairwise comparisons
Jittered points: Optional individual data points with different markers
Custom colors: Flexible color palette support
Publication-ready: Clean, professional appearance
Flexible ordering: Control the order of groups

Basic Usage

from ggpubpy import plot_boxplot_with_stats, load_iris
import matplotlib.pyplot as plt

# Load sample data
iris = load_iris()

# Create boxplot with statistical annotations (matches examples/boxplot_example.png)
fig, ax = plot_boxplot_with_stats(
    df=iris,
    x="species",
    y="sepal_length",
    x_label="Species",
    y_label="Sepal Length (cm)",
    title="Iris: Sepal Length by Species",
    subtitle="Box plot with ANOVA + pairwise",
    parametric=True,
    alpha=0.6,
)

plt.show()

Boxplot Example

Function Parameters

`plot_boxplot_with_stats()`

Parameters:

df (pd.DataFrame): Your data
x (str): Column name for categories (must be categorical)
y (str): Column name for numeric values
x_label (str, optional): Axis label for x-axis. Defaults to column name
y_label (str, optional): Axis label for y-axis. Defaults to column name
title (str, optional): Overall plot title
subtitle (str, optional): Plot subtitle
order (list, optional): Order of x categories. Defaults to sorted unique values
palette (dict, optional): Mapping from category to color
figsize (tuple): Figure size (default: (6, 6))
add_jitter (bool): Whether to add jittered points (default: True)
jitter_std (float): Standard deviation for horizontal jitter (default: 0.04)
alpha (float, optional): Transparency for jittered points (default: 0.7)
box_width (float): Width of each box in the plot (default: 0.6)
global_test (bool): Whether to perform and display global statistical test (default: True)
pairwise_test (bool): Whether to perform and display pairwise comparisons (default: True)
parametric (bool): If True, use parametric tests (ANOVA + t-test). If False, use non-parametric tests (Kruskal-Wallis + Mann-Whitney U) (default: False)

Returns:

tuple: (figure, axes) matplotlib objects

Examples

Two Groups Example

from ggpubpy import plot_boxplot_with_stats, load_iris
import matplotlib.pyplot as plt

# Load Iris data (two groups: setosa vs versicolor)
iris = load_iris()
iris_2 = iris[iris["species"].isin(["setosa", "versicolor"])]

# Create boxplot comparing two groups (matches examples/boxplot_2groups_example.png)
fig, ax = plot_boxplot_with_stats(
    df=iris_2,
    x="species",
    y="sepal_length",
    x_label="Species",
    y_label="Sepal Length (cm)",
    title="Iris: Setosa vs Versicolor",
    subtitle="Box plot with Mann-Whitney U",
    parametric=False,
    alpha=0.6,
)

plt.show()

Boxplot Two Groups Example

Three Groups Example

from ggpubpy import plot_boxplot_with_stats, load_iris
import matplotlib.pyplot as plt

# Load Iris data
iris = load_iris()

# Create boxplot with three groups
fig, ax = plot_boxplot_with_stats(
    df=iris,
    x="species",
    y="petal_length",
    x_label="Species",
    y_label="Petal Length (cm)",
    title="Petal Length by Species",
    order=["setosa", "versicolor", "virginica"],
    palette={"setosa": "#FF6B6B", "versicolor": "#4ECDC4", "virginica": "#45B7D1"},
    figsize=(8, 6),
    parametric=True  # Use parametric tests
)

plt.show()

Boxplot Three Groups Example

Custom Styling Example

from ggpubpy import plot_boxplot_with_stats, load_iris
import matplotlib.pyplot as plt

# Load Iris data
iris = load_iris()

# Create custom styled boxplot
fig, ax = plot_boxplot_with_stats(
    df=iris,
    x="species",
    y="sepal_width",
    x_label="Species",
    y_label="Sepal Width (cm)",
    title="Sepal Width Distribution",
    subtitle="Statistical comparison across species",
    order=["setosa", "versicolor", "virginica"],
    palette={"setosa": "#E74C3C", "versicolor": "#F39C12", "virginica": "#27AE60"},
    figsize=(10, 7),
    add_jitter=True,
    jitter_std=0.05,
    box_width=0.7,
    global_test=True,
    pairwise_test=True,
    parametric=False
)

plt.show()

Statistical Tests

The function automatically performs appropriate statistical tests:

Global Test

Parametric: One-way ANOVA
Non-parametric: Kruskal-Wallis test

Pairwise Comparisons

Parametric: Independent t-tests with multiple comparison correction
Non-parametric: Mann-Whitney U tests with multiple comparison correction

Significance Levels

*** p < 0.001
** p < 0.01
* p < 0.05
ns p ≥ 0.05

Tips

Choose appropriate tests: Use parametric tests for normally distributed data, non-parametric for skewed data
Custom colors: Provide a palette dictionary for consistent coloring
Jitter points: Help visualize individual data points and sample sizes
Order groups: Use the order parameter to control the sequence of groups
Figure size: Adjust figsize based on the number of groups and your publication requirements

Integration

The boxplot function integrates seamlessly with other ggpubpy functions:

from ggpubpy import plot_boxplot_with_stats, plot_violin_with_stats, load_iris

# Create multiple plots for comparison
iris = load_iris()

# Boxplot
fig1, ax1 = plot_boxplot_with_stats(iris, "species", "sepal_length")

# Violin plot

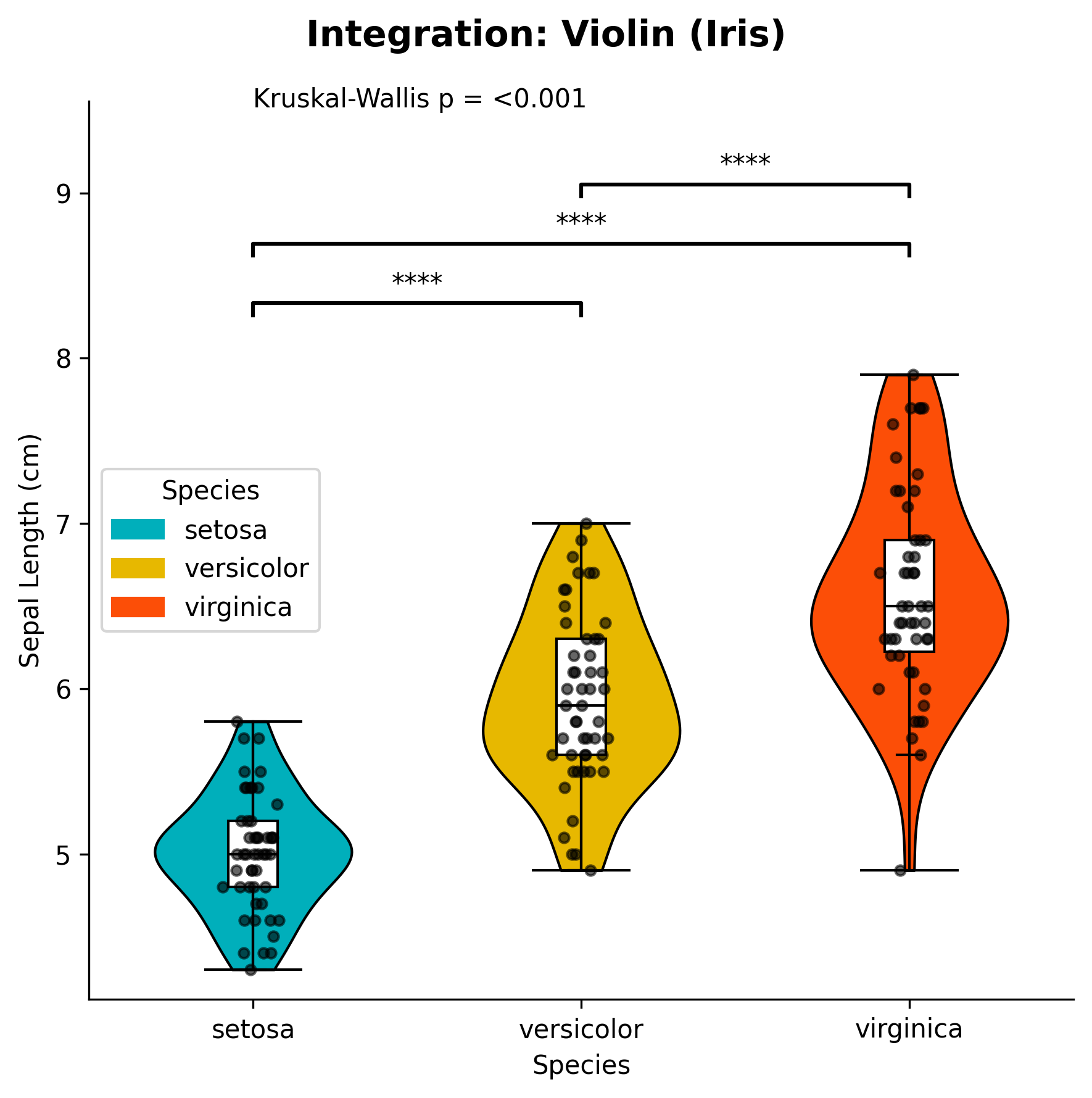

fig2, ax2 = plot_violin_with_stats(iris, "species", "sepal_length")

Note: The figures on this page are generated by running examples/boxplot_examples.py and examples/boxplot_extra_examples.py using identical parameters.

Integration Boxplot Integration Violin
